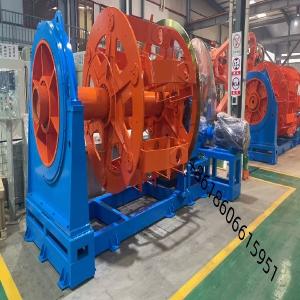

Planetary Strander Design With 1+6+12+18+24+30 Bobbin Cage And Motor Tension Adjustable
roduct Description:
- The equipment is mainly used for the laying of insulated core wires, such as copper, aluminum conductor, control cable, signal cable and small-size plastic cable, etc.The equipment adopt of PLC program control + touch screen + variable frequency speed regulation control + pneumatic control.
- The synchronization performance deviation does not exceed 3% in the states of start, normal operation, slow stop, emergency stop, etc., to ensure the stability of the twist pitch.
- Equipped with an automatic wire-breaking stop machine founction, it can stop and brake in time when the wire is broken or the wire is finished.
- The whole machine is operated and controlled by the HMI + color touch screen, and the electrical system is advanced
Features:
- Product Name: Planetary Stranding Machine
- Machine Painting: According To Customer Request
- Power Supply: 380V, 50Hz, 3 Phase
- Tension: Mechanic Or Hysteresis
- Usage: Stranding
- PLC: Siemens
Technical Parameters:
| Input wire diameter | Copper Ø 1.5-Ø 5.0mm |
| Aluminum Ø 1.8-Ø 5.0mm |
| Insulated wire Ø2.0-Ø 8.0mm |
| Max stranding OD | Ø45mm |
| Max diameter of center hole in stranding cage | Ø60mm |
| Max rotation speed | 70 r/min |
| Stranding pitch | 63 ~ 700mm (Electric control stepless adjustable, customized) |
| Max line speed | 35m/min |
| 6 Reels motor power | 37KW(AC) |
| 12 bobbins motor power | 45KW(AC) |
| 18/24 Reels motor power | 55KW(AC) |
| Capstan motor power | 55KW(AC) |
| Take-up motor power | 5.5KW(AC) |
| Pay-off reel size in stranding cage | PND630 |
| Double capstan wheel diameter | Ø2000mm |
| Central pay-off reel size | PND500-PND630 |
| Take-up reel size | PN1250-PN2500 |
| Machine center high | 1000mm |
Electrical control system:
The electric control part is composed of power cabinet, operation cabinet, touch screen, etc., and there are corresponding control buttons on each unit
The electrical cabinet is designed with good mechanical properties and dustproof performance, and is equipped with a proper amount of forced ventilation fans.
The power supply is: 3-wire 5-phase system, 380V (±10%) 50HZ.
Total installed power: 240KW
Motor protection function: The electrical control circuit is designed with: phase loss, overload, and overheat protection functions to prevent motor damage.
The alarm fault information can be queried on the touch screen, and it has the functions of alarm fault and production process data storage.
Operating system: It can view and modify various parameter settings in the production process in real time, such as pitch, production speed, current working status and other information.
All drive motors are designed with encoders and the encoder feedback operates in a closed loop control system.
The unit adopts PLC unified coordination control operation. It adopts touch screen HMI to operate. Simple and convenient operation
Main components:
| Ø630mm Stationary type Pay-off stand | 1 set |
| 6+12+18_24 Reels stranding cage | Each 1 set |
| Closing wire die holder | 4 set |
| Mechanical+ digital Meter counter | 1 set |
| Ø2000mm Double wheel capstan machine | 1 set |
| Ø2500mm Column type take-up with traverse stand | 1 set |
| Electric control system | 1 set |
| Safety protection system | 1 set |
FAQ:
Q: What is the brand name of this machine?
A: The brand name of this machine is Beyde.
Q: What is the model number of this machine?
A: The model number of this machine is 630/1+6+12+18+24.
Q: Where is this machine manufactured?
A: This machine is manufactured in China.
Q: What is the capacity of this machine?
A: The capacity of this machine varies depending on the number of strands required. It can produce up to 18 strands at once.
Q: What is the application of this machine?
A: This machine is used for stranding and laying-up of round or sector-shaped conductors as well as insulated cores.
